SKYZONE FPV Goggles: OLED, LCD, or Box-Style? A Buyer's Guide

SKYZONE builds analog goggles, and every goggle in its current catalog receives 5.8GHz analog video. The store's own goggles collection lists twelve models and not one of them is a native DJI, Walksnail or HDZero receiver - the collection's product names and each model's own page describe 5.8GHz receivers throughout. That one fact does more sorting than any spec sheet: if you fly digital HD, these goggles are not your screen, or they are your screen only through an external HD receiver's HDMI output cabled into the goggle's HDMI input - an input all four covered models have per SKYZONE's own manuals, at ratings that differ more the further you read. If you fly analog, all four work with your VTX, and the choice becomes shape and panel: OLED or LCD, slim goggle or box.

Four listings follow, sorted by panel and form factor: the SKY04X Pro, a 1,920 by 1,080 OLED goggle with 52 degrees of field of view and the highest published HDMI input rating here (720P at up to 100FPS); the SKY04O Pro, a 1,280 by 720 OLED at 42 degrees whose own manual documents an HDMI input at 60FPS; the Cobra X V4, a 1,280 by 720 LCD box goggle with head tracking; and the Cobra SD, a pre-order 800 by 480 LCD box goggle whose product page omits the figures SKYZONE's own Cobra manual prints for it. The rest of the catalog is passed over deliberately: the non-Pro SKY04X and SKY04O are the older and lower-tier siblings of covered designs; the SKY02O, SKY03O, SKY03 and EV300O are earlier OLED generations; and the M5F is a monitor, not something you wear. Every figure below is what SKYZONE states on its own product and policy pages and in its two official user manuals for these lines, all read on October 17, 2026. JellyReviews has not flown any of these goggles, owns none of them, and makes no picture-quality judgment of its own; where a claim is the maker's, the sentence says so. Listed figures are what the store's buy boxes showed on that date and will move.

Affiliate disclosure: JellyReviews may earn a commission when an eligible purchase is correctly attributed through an affiliate link. Attribution is handled by the store's own systems and can change, so no guarantee is implied here.

What analog 5.8GHz means before you compare panels

An analog goggle is a receiver first. The chain runs: camera on the quad produces an analog video signal, the VTX modulates and transmits it on its 5.8GHz channel, and the goggle's built-in receiver tunes that channel and draws the video onto the screen - the over-the-air link is analog, and the latency of that radio link is what you feel. Three of the four goggles here have a SteadyView receiver built in, SKYZONE's own two-signal mixing design, which the Cobra X V4 page describes as merging two signals into one to avoid image tearing when the signal is weak; the Cobra SD is the exception, a conventional diversity receiver - it switches between two antennas rather than mixing, per SKYZONE's own Cobra manual and its listing. Reception lives or dies on the antennas, and this is where the photographs mislead: every goggle here ships with two 5.8GHz 2dB antennas in the box per the package lists, but the packshots show bare SMA-K connectors, not antennas attached. What the box contains is the package list in each section below, not the photograph.

Digital is the other road, and the honest version is longer than a slogan. A Walksnail, HDZero or DJI HD system sends its own digital signal that no analog receiver can decode, so none of these four goggles receives any of them natively. The bridge, where it exists, is hardware: an external digital receiver module with an HDMI output, cabled into a goggle that accepts HDMI input - and HDMI input is common on this lineup, not a flagship exclusive. SKYZONE's own SKY04O PRO/04X PRO manual publishes an HDMI IN row for both Pro models: 60FPS on the SKY04O Pro, 720P at up to 100FPS on the SKY04X Pro, whose listing says a firmware update raised it from 60FPS. The shared Cobra manual shows an HDMI input port in the chassis diagram and an HDMI IN mode, for the Cobra X V4 and the Cobra SD alike. What separates the SKY04X Pro is the rating and one maker-stated use: its second listing says the 100FPS input is what lets a Walksnail VRX run its high-frame-rate, low-latency 720P 100FPS mode. That is SKYZONE's claim about one module family, not an independent test, and it is not a statement about DJI O3/O4, Avata or HDZero - which modules work through which input, at which settings, with which cabling and power, is a compatibility question to settle with the module maker's own documentation before you buy anything on the HDMI theory. The store's download page does list firmware for a Hurricane5 DJI O3 module, which is as far as the official record on digital modules goes.

The panel decision: OLED versus LCD, 52 versus 42 degrees

The two Pro goggles differ in three published numbers. Panel: OLED on both, LCD on both Cobras. Resolution: 1,920 by 1,080 on the SKY04X Pro against 1,280 by 720 on the SKY04O Pro, on the makers' spec blocks. Field of view: 52 degrees diagonal on the SKY04X Pro against 42 on the SKY04O Pro, again on the makers' printed specs - though field of view is set by the optics as well as the panel, so it is a comparison number between these two models, not a rule that bigger panels mean wider views. Both Pros adjust to your face the same way on paper: 58 to 71mm of interpupillary distance per both the manual and the listings, and a focus range the canonical listings print as -6 to +2 - the SKY04X Pro's second listing prints -2 to +6 instead, an unresolved conflict between the maker's own pages, worth a support question if diopter range decides anything for you. The DVR formats differ in passing: H264 at 60fps on the SKY04X Pro, MJPEG at 60fps on the SKY04O Pro - same frame rate, different codec, and neither page explains the choice.

One trap deserves its own paragraph: the store sells the SKY04O Pro at four different URLs with two different listed figures. The canonical listing this guide links - the one titled for its 1,280 by 720 resolution and 5.8G receiver - lists at 477.00 dollars as of October 17, 2026 and names its receiver as a 48CH Steadyview. A second URL for the same goggle lists at 435.00 dollars, names its receiver only as 48CH with no brand, and manages to read both Sold out and In stock at once; a third carries HDMI in its title but no HDMI specification anywhere on the page. The store's own surfaces therefore under-document this goggle: no listing publishes an HDMI input spec, but SKYZONE's SKY04O PRO/04X PRO manual does - its specification table carries an HDMI IN row at 60FPS for both Pro models, and its chassis diagram labels the HDMI input port. This guide reports the manual figure with that attribution: an HDMI input exists on the SKY04O Pro at 60FPS per the maker's manual, with no published resolution figure for that input and no listing-level confirmation of what the current shipping configuration carries. Read the URL you land on, not the model name.

SKY04X Pro: the flagship HDMI rating, and the maker-stated Walksnail mode

The SKY04X Pro is a 1,920 by 1,080 OLED goggle at 52 degrees diagonal with SKYZONE's 48CH V3.3 SteadyView receiver built in, on the maker's spec block. The headline extras are physical: the right module bay holds a cooling fan for the high-performance OLED panel, which the store's own copy says is why the SKY04X Pro no longer supports quadversity mode - two receivers, four antennae - because the second bay is occupied. The HDMI input is the highest-rated here: 720P at up to 100FPS, a figure the description says was raised from 60FPS by firmware, and the same listing spells out the one maker-stated digital use - for the Walksnail VRX in particular, it allows the receiver's high-frame-rate, low-latency 720P 100FPS mode. That sentence is SKYZONE's, not a test, and it names one module family; it says nothing about DJI, HDZero or other Walksnail hardware. The store's download page carries SKY04X Pro firmware through V4.2.3, whose changelog fixes a tearing artifact under narrow FOV mode. The goggle weighs 267 grams on the maker's figure and runs on a 2 to 6S LiPo input; the connector type is not stated on the page.

The package list is complete enough to fly from a bench supply: goggles, the SteadyView V3.3 receiver module, two faceplates (wide and narrow), a sponge with velcro, a zipper case, power cable, head tracker cable, two 5.8GHz 2dB antennas, video/audio cable, USB-C cable and the manual. What it does not contain is a battery - no cell ships in the box - and the power input needs whatever 2 to 6S source you bring. The store lists the SKY04X Pro at 548.00 dollars as of October 17, 2026, in stock. One duplicate URL shows a 519.00 compare figure; the canonical page prints 548.00 as both regular and sale. If you fly analog and want the largest published panel and field of view of the four covered here, this is the one with both; if you fly digital and want these as a screen, it is the only one of the four with an HDMI spec to even ask the question against - and the receiver-module caveat above still applies in full.

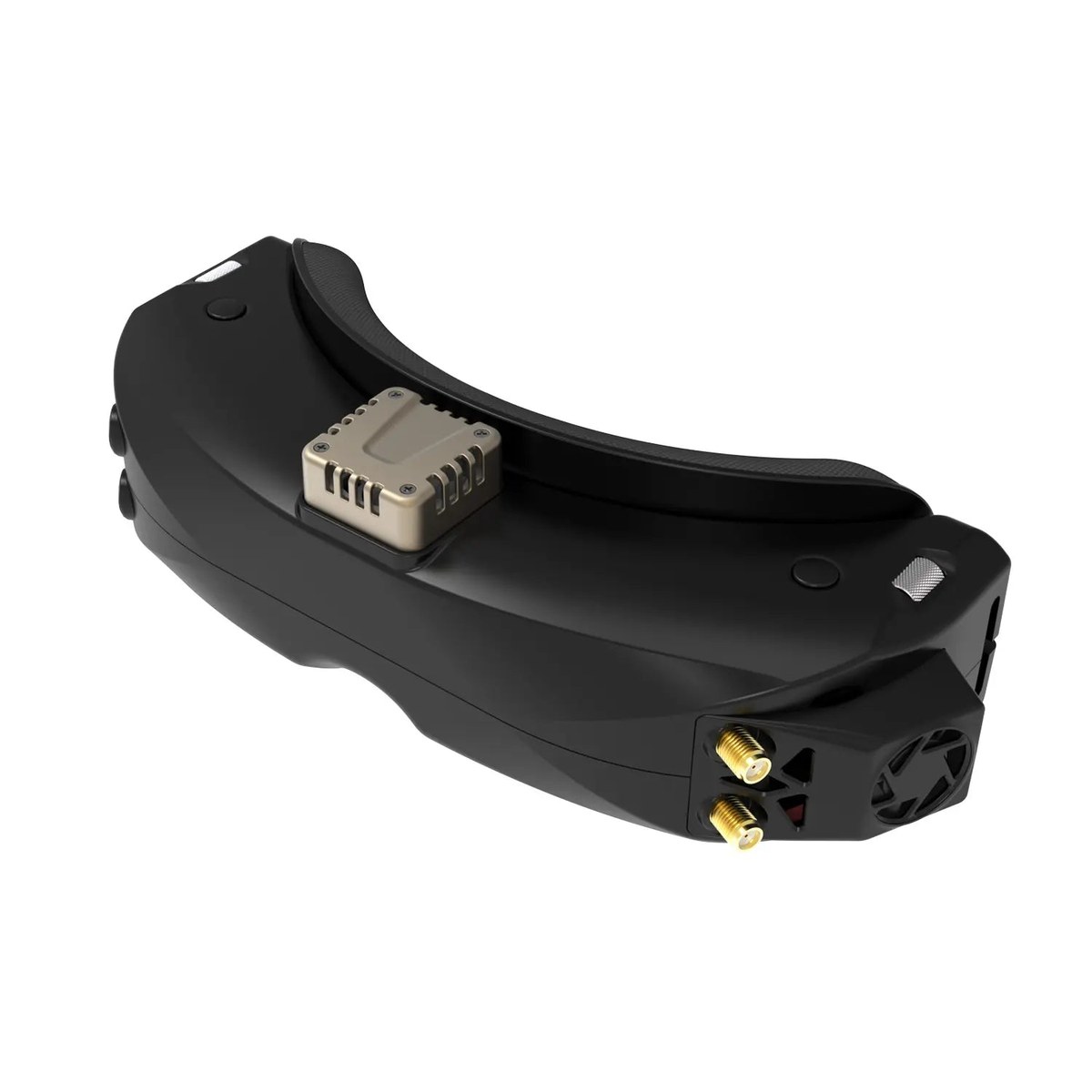

SKY04O Pro: the same OLED idea one tier down

The SKY04O Pro is a 1,280 by 720 OLED goggle at 42 degrees with a 48CH Steadyview receiver, per the canonical listing's spec block - the URL titled for its resolution and 5.8G receiver, the one this guide links. It shares the Pro ergonomics exactly: 58 to 71mm IPD, -6 to +2 focus, ten languages, the same head tracker hardware (three-axis accelerometer, three-axis gyroscope), and a stated power draw of 720mA at 12V from a DC 6.5-25.2V or USB 5V supply - the clearest power spec of the four pages. Its DVR writes MJPEG at 60fps to cards up to 128GB. The antenna connector is SMA per the spec block, matching the packshot's two bare gold connectors. And it has an HDMI input: no listing says so, but the maker's SKY04O PRO/04X PRO manual publishes an HDMI IN row at 60FPS for this model and labels the HDMI input port in its chassis diagram - a lower rating than the SKY04X Pro's 720P 100FPS, with no resolution figure published for the input and no maker-stated digital-module pairing.

The four-URL problem is this listing's real cost, so it is worth repeating once in its own section: 477.00 on the canonical page, 435.00 on a page that drops the Steadyview name from the receiver line, a third URL titling HDMI it never specifies, and a fourth at 477.00 showing a struck-through 455.00. Which receiver version ships - the spec block on the canonical URL names no version number, where the SKY04X Pro's names V3.3 - is not published anywhere on any of the four pages, and that is a question for the store's support before ordering, not something this guide will guess. The package list matches the SKY04X Pro's almost line for line: receiver module, two faceplates, sponge, zipper case, power and head tracker cables, two 5.8GHz 2dB antennas, video/audio cable, USB-C cable, manual - and again no battery. The store lists it at 477.00 dollars as of October 17, 2026, in stock, shipping within 12 hours. Against its bigger sibling the trade is legible on the maker's own numbers: 360 fewer vertical lines of resolution (1,080 against 720), 10 fewer degrees of field of view, 71.00 dollars less at the listed figures, same IPD range and same faceplates. The 548.00 goggle buys panel and FOV; the 477.00 goggle buys the rest of the same experience.

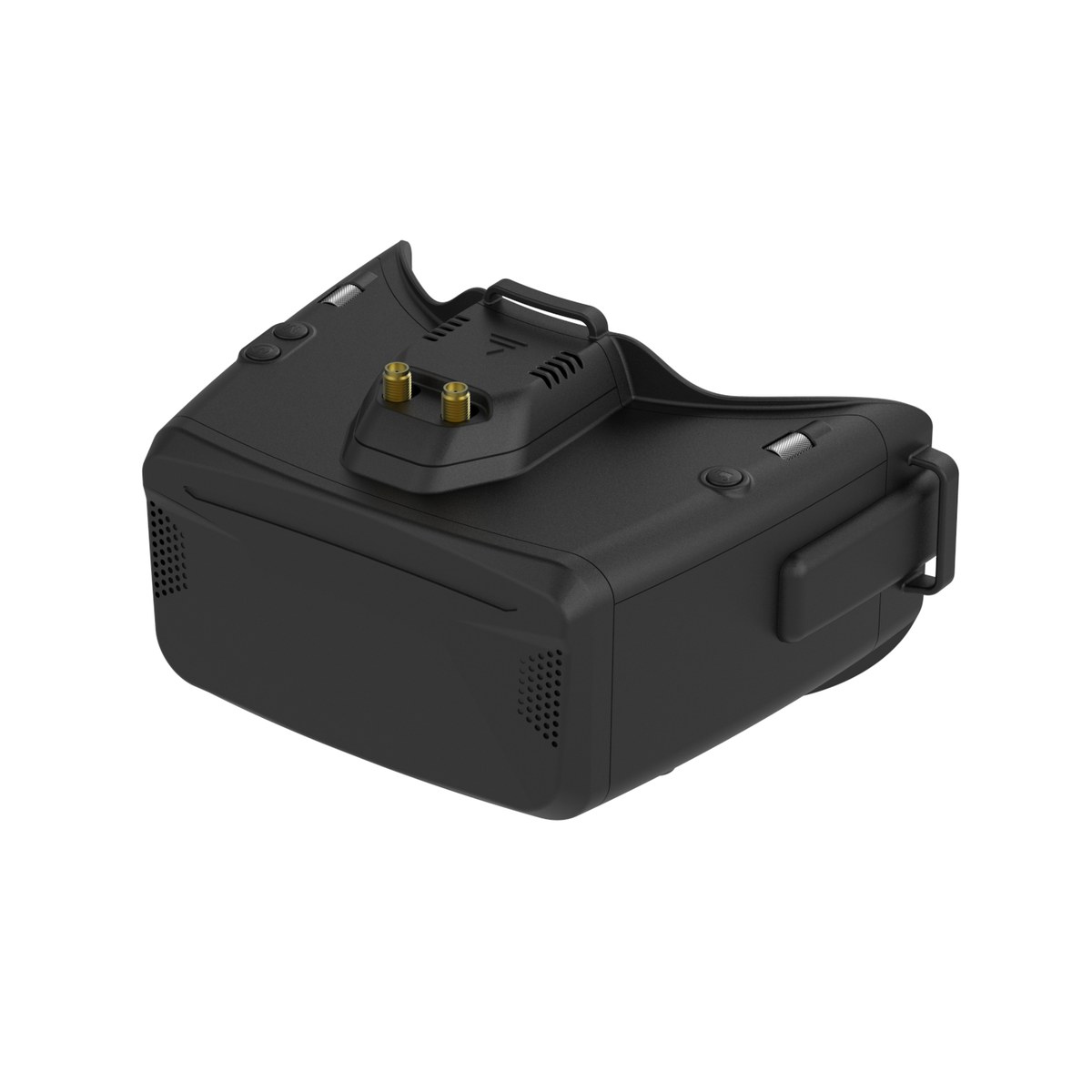

Cobra X V4: the box goggle with the longest spec sheet

The Cobra X V4 is the box-formfactor entry: a 1,280 by 720 LCD panel at 50 degrees diagonal, SKYZONE's 48CH V3.3 SteadyView receiver - the same version as the SKY04X Pro's, per both spec blocks - and an upgraded DVR the page describes as H264 at 60fps to cards up to 128GB. It is a box goggle, which means the optics and screen sit in one shell held on a strap rather than two eyecups on a bridge: easier over glasses, one-size-fits-most, and bulkier on the face. The page says it supports pilots wearing glasses and gives no IPD or diopter figure at all - the fit story is the form factor itself, not an adjustment range. Power runs three ways: a single 18650 cell, or DC 6.5-25.2V, or USB 5V, with USB and DC charging built in. The maker's shared Cobra manual adds an HDMI input to the chassis - port 11 in its diagram, with a selectable HDMI IN mode - though no Cobra publishes an input rating to compare with the Pros' figures. It also carries the head tracker hardware, a ten-language menu, and a stated weight of 332 grams against the SKY04X Pro's 267.

The package list covers the accessories the Pros split out: goggles, the V3.3 receiver module, head strap, power cable, head tracker cable, two 5.8GHz 2dB antennas, video/audio cable, USB-C cable and manual. No 18650 cell ships in the box - the power line lists the cell type it accepts, not one it includes. The store lists the Cobra X V4 at 292.00 dollars as of October 17, 2026, in stock, shipping within 12 hours - and prints that sale figure above a regular figure of 272.00, the only listing here whose displayed figure sits above its own regular one. This guide reports both numbers and resolves neither; read the checkout figure before you order. For a first analog setup, or a second goggle for friends at the field, this is the listing with the receiver version in writing, a head tracker, and the box-goggle fit that the IPD numbers on the Pros cannot offer glasses wearers.

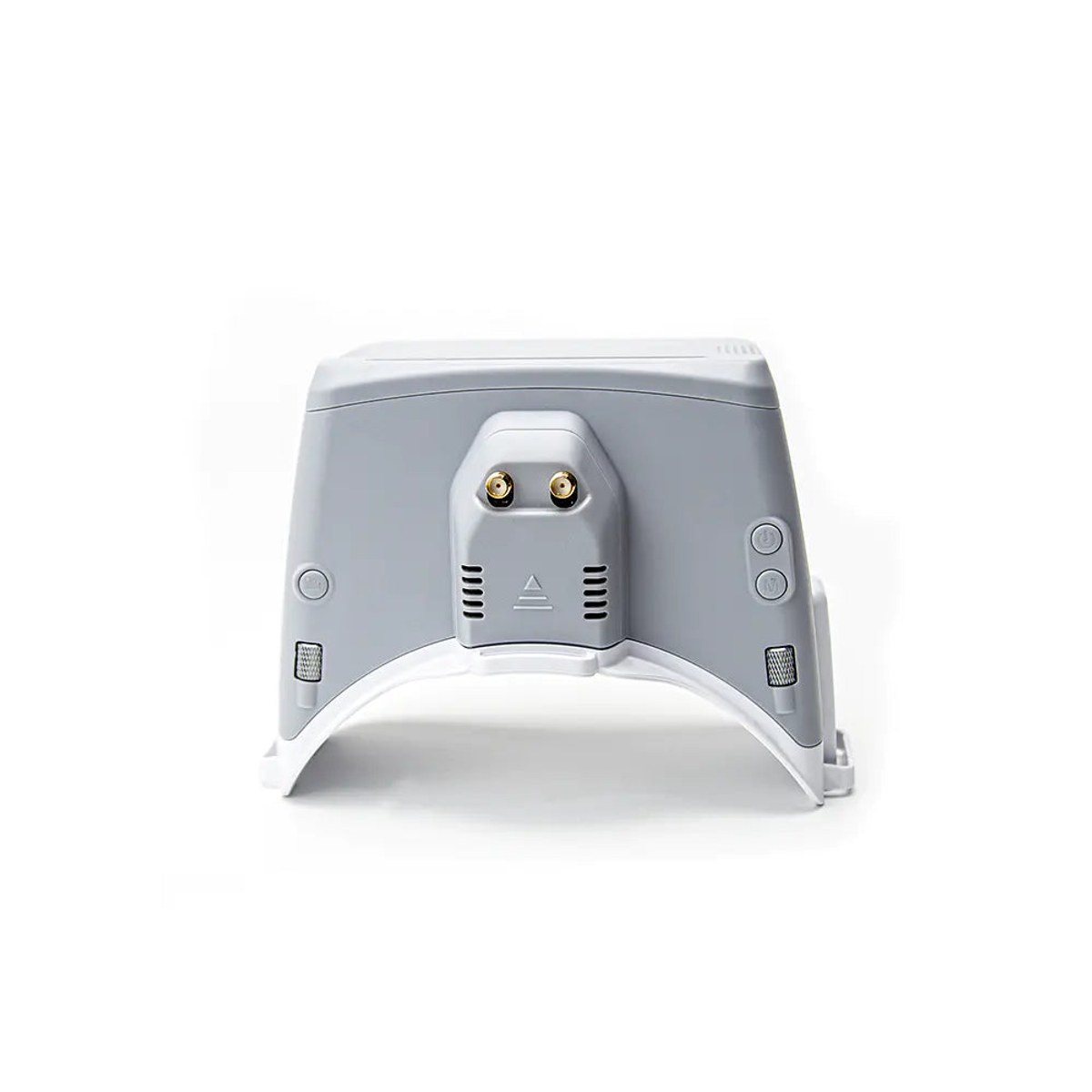

Cobra SD: the pre-order listing whose own manual knows more than the page shows

The Cobra SD is the diversity-receiver sibling of the box line, and the split between its two surfaces is wider than any other listing here. The product page is the shortest on facts of the four: a 16:9 LCD box goggle, a 18650 cell or 2 to 6S LiPo with USB and DC charging - no voltage rating, no connector type - and glasses-friendly per the page. SKYZONE's own Cobra manual fills what the page omits: its specification table carries a Cobra SD column reading 800 by 480 LCD, 50-degree diagonal FOV, 16:9, a 5.8GHz 48CH Diversity receiver, and an MJPEG DVR at 30fps, at 332 grams. That receiver line matters twice: it is not a SteadyView - the SD switches between antennas rather than mixing two signals, so it sits outside the tearing-merging design the other three name - and it is the only receiver on this page whose type is conventional diversity. The same manual's chassis diagram carries an HDMI input port and an HDMI IN mode, so the SD shares the Cobras' input hardware; as with them, no input rating is published. One caveat this guide will not paper over: the manual the download page currently links is version 1.7, dated September 2026, and it covers the shared Cobra X V4 / Cobra SD chassis - its SD column also names the receiver Diversity V2 and caps the DVR card at 32GB, details a 2021 edition of the same manual printed without - while the listing is a pre-order page today and nothing on the store ties the current shipping configuration to any one manual printing. So the figures above are the maker's documented ones, read on October 17, 2026, and worth confirming with the store before ordering. Two customer reviews on the page point in opposite directions - one reports a working HDMI connection to a PC, another reports a DVR that recognizes no SD card; reviews are not specifications, and this guide treats them as neither.

It is also not purchasable now: the listing shows Pre-order at 219.00 dollars as of October 17, 2026, so this guide will not describe pre-order stock as something you can have this week. The bundle list matches the Cobra X V4's exactly - receiver module, head strap, power and head tracker cables, two 5.8GHz 2dB antennas, video/audio cable, USB-C cable, manual. Who it fits: a buyer comfortable waiting, who wants the box-goggle fit and a conventional diversity receiver at the lowest listed figure of the four - 219.00 against the Cobra X V4's 292.00 - and who reads the SD's documented 800 by 480 / 30fps figures as the trade that the lower listed figure pays for. Who should skip it: anyone who needs the 1,280 by 720 panel or the 60fps DVR of the V4 - the manual says the SD runs a lower resolution and half the DVR frame rate - and anyone who needs the store to confirm today's hardware matches a 2021 manual before money moves.

Firmware, receivers and the compatibility homework

The store's download page is the authoritative source for firmware and manuals, and one line on it does real work: a note that goggles must flash to the latest firmware to be compatible with the receiver. SKYZONE posts SKY04X Pro firmware through V4.2.3, SKY04O Pro through V1.1.4, Cobra X through V4.1.5 and Cobra SD/CobraS through V3.1.3, plus SteadyView module firmware in V3.3, V3.4 and ELRS variants, and SteadyView X manuals in 5.8G, 5.0G and 7.5G flavors. The 5.0GHz matter deserves one caution: the SKY04X Pro has a version selector offering 5.8G and 5G on one of its duplicate URLs, the download page hosts SteadyView X manuals in 5.0G, and none of the pages explains what changes between the bands - 5.8GHz is the analog FPV standard, so a 5G-version receiver would tune a different band entirely. If a listing offers you a band choice, 5.8G is the one that talks to a racing quad's VTX; confirm with the store before ordering any non-default band.

Before first flight, the mechanical checklist from the package lists: the two included 2dB antennas screw onto the receiver's SMA-K connectors finger-tight, and the antenna matters differently at each end of the link. A VTX transmitting with no antenna attached can burn out its output stage - that is the hardware-damage case, and it is why the VTX never powers up before its antenna goes on. The goggles' side is a reception problem, not that damage mechanism: a receiver running with no antennas receives poorly or not at all, so both included antennas go on before you expect a picture, and any replacement antennas must be 5.8GHz-rated SMA with the right polarity for these jacks. No battery ships in any of the four boxes; the Pros want a 2 to 6S source (SKY04O Pro: 6.5-25.2V DC or USB 5V) and the Cobras accept a single 18650 or that same 2 to 6S range. The head tracker cable links the goggles' built-in tracker to a compatible port on the aircraft, and each package includes the video/audio cable the list names, for piping the receiver's feed to another display. Radio rules are yours to check: 5.8GHz video is legal on specific channels and power levels that vary by country, and nothing on the store's pages grants permission anywhere - check your local rules before powering a VTX.

Returns, warranty and shipping as the store prints them

The return policy runs on a 14-calendar-day clock: you have 14 days from the date you receive the package to submit a return request through your order page. Eligibility is strict, and for goggles it matters: the product must not have been assembled, flown, charged or damaged, with all packaging and accessories intact - and the non-returnable list names used goggles and worn antennas outright - the policy excludes goggles by their condition, so whether trying a goggle on counts as using it is exactly the kind of eligibility question to ask the store before you do it. A change-of-mind return costs the buyer all return shipping fees, customs duties and delivery charges, plus a 15 percent restocking fee deducted from the refund; the store will not accept COD return parcels. Defect returns are the other road: the maker covers return shipping on manufacturing defects, and damage must be reported within 48 hours of delivery with unboxing video and photos. Refunds process within 7 working days of the store receiving and inspecting the return, with card or bank transfers needing another 3 to 10 business days on top. Orders cancel free before they ship; after fulfilment, not at all.

One return figure disagrees across the store's own surfaces, and a buyer should see both. The general return policy runs on the 14-calendar-day window above. But the product listings themselves still carry promotional badges reading EASY RETURNS 30-day postage paid returns and 30-Day Money Back, alongside a 12-Month Warranty line - the SKY04X Pro, both SKY04O Pro listings this guide compared, and the Cobra X V4 page all show them. Some of those listings also print the 14-day policy text alongside the badges, and some do not: the two listings this guide's own buttons open - the SKY04X Pro and the SKY04O Pro canonical pages - carry the 30-day badges with no 14-day text anywhere on the page. This guide does not advertise 30-day free returns off those badges: the general policy's restocking fee and buyer-paid return freight are the terms with detail behind them, the badges carry none, and the two windows have not been reconciled anywhere on the store. If a return window decides your purchase, get the term that applies to your order in writing from the store before buying.

The warranty line differs by page, and this guide preserves the conflict rather than blending it. The consumer return page and the shipping page both state a one-year warranty. The store's dealership page - a B2B page for its dealers - states that defective merchandise enjoys the privilege of a lifetime warranty. Those are two live pages printing different warranty lengths for what reads as the same defect mechanism, and the store's service statement partially reconciles them by scoping comprehensive after-sales service to purchases through the official website and refusing service on products sourced elsewhere. Nothing on the consumer pages converts the dealer term into a retail lifetime warranty, so a retail buyer's stated term is one year. If warranty length decides your purchase, confirm the term with the store in writing before ordering - the store's own pages disagree.

Shipping runs from CN, USA and EU warehouses worldwide, with orders processing in about one business day, business days only. The cost rule: free over 99 dollars, otherwise a standard 10 dollars with a stated 7 to 15 day window; carriers include DHL, UPS, EMS and others at a stated 5 to 20 days, and the page says outright that it cannot guarantee an exact delivery time. The page's stated overall figure is 7 to 20 business days.

Who should skip what

• ▸Skip the SKY04X Pro if you fly analog on a budget: the SKY04O Pro is the same OLED ergonomics, IPD range and package at 71.00 dollars less at the October 17, 2026 listed figures, giving up 10 degrees of FOV and 360 vertical lines of resolution on the maker's numbers.
• ▸Skip the SKY04O Pro if receiver provenance matters to you: its four live URLs disagree about the receiver's name and its listed figure, and no page publishes a version number - the store's support line is the only way to know what ships.
• ▸Skip the Cobra X V4 if you want the sharpest published panel: 1280x720 LCD against the Pros' OLED at 42 or 52 degrees is the panel ladder stepping down, whatever the checkout shows.
• ▸Skip the Cobra SD entirely if you need to buy and fly: it is pre-order stock, and its 800 by 480 / 30fps manual figures are a documented half-step down from the V4's 720p/60fps.
• ▸Skip all four if you fly DJI, Walksnail or HDZero and want a native screen: none is a digital receiver. The maker-stated digital match is the Walksnail VRX 720P 100FPS mode through the SKY04X Pro's HDMI input - everything else is unverified.
• ▸Skip all four as gifts for a first-time pilot without a battery plan: no box here includes a power cell - 2 to 6S or 18650 is on you.

Frequently asked questions

Are SKYZONE goggles compatible with DJI, Walksnail or HDZero? Not natively, and no store page claims it. All four covered goggles are analog 5.8GHz receivers; the bridge, where it exists, is an external digital receiver module with an HDMI output feeding the goggle's HDMI input - an input all four have per SKYZONE's manuals, at different published ratings (SKY04X Pro 720P 100FPS, SKY04O Pro 60FPS, Cobras unrated). The one maker-stated match is SKYZONE's own sentence on a SKY04X Pro listing: the 100FPS input allows the Walksnail VRX's high-frame-rate, low-latency 720P 100FPS mode. Nothing published pairs any module with DJI O3/O4, Avata, HDZero, or the SKY04O Pro's or Cobras' inputs, and this guide will not invent those pairings. Ask the module maker, in writing, before buying on this theory.

SKY04X Pro or SKY04O Pro - is the step up worth it? The maker's numbers make the trade explicit: 1,920 by 1,080 against 1,280 by 720, 52 degrees against 42, H264 against MJPEG DVR, 267 against a slightly heavier sibling, at 548.00 against 477.00 listed on October 17, 2026. What the step up also buys is a published HDMI spec and a stated receiver version (V3.3), neither of which the SKY04O Pro's pages publish. What nobody publishes is a picture-quality judgment - JellyReviews has not looked through either, and panel quality is exactly the kind of claim this site does not make.

Do SKYZONE goggles work with my analog VTX out of the box? On the maker's own pages, yes for the standard path: each goggle has a 48CH 5.8GHz receiver covering the bands racing VTXs transmit on, and the package includes two 5.8GHz antennas. Screw the antennas on before powering anything - the VTX especially, which is the end that can be damaged by transmitting into no load - then bind a channel, fly. The exceptions are the ones above: a 5G-band version selector on one SKY04X Pro URL that would not talk to a 5.8GHz VTX, and firmware - the download page notes goggles must flash to the latest firmware to be compatible with the receiver module.

Is the Cobra SD worth waiting for? The specs are no longer the mystery - SKYZONE's Cobra manual documents the SD at 800 by 480 LCD, 50-degree FOV and an MJPEG DVR at 30fps with a conventional diversity receiver, figures its own listing omits. The trade is those documented numbers against the Cobra X V4's 1,280 by 720 and 60fps H264 DVR, at 73.00 more at the listed figures. What is still uncertain is the hardware itself: the SD is pre-order stock, the manual covers the shared Cobra chassis (its current edition names the SD receiver Diversity V2 and a 32GB DVR card cap), and nothing on the store confirms the shipping configuration matches any one printing - so ask the store to confirm before money moves, and treat the wait as part of the cost either way.

What is the difference between SKY04X and SKY04X Pro? The store sells both. The older SKY04X lists at 529.00 on its page against the Pro's 548.00, and the Pro's spec block is the one carrying 1,920 by 1,080 OLED, the fan-in-right-bay cooling, the no-quadversity note and the 720P 100FPS HDMI input; this guide covers only the Pro. If a listed figure looks off, check which of the two the URL names - the store carries both side by side.

SKYZONE's own storefront is the source for every product page, spec block, frequency table and policy quoted above, all read on October 17, 2026. Its two official user manuals - the SKY04O PRO/04X PRO manual and the shared Cobra manual, both linked from the store's download page - are the source for the HDMI input rows, the Cobra SD column and the chassis diagrams cited above. It remains the place to check current stock states, package lists and listed figures before you order - those figures move, the SKY04O Pro sells at two listed figures on four URLs, and the return-window and warranty questions above are the store's own disagreements, not this guide's. Product photographs are sourced from SKYZONE's official product galleries.
